Anodizing: What It Is, Applications, and Process

What Is It? Anodizing is a metal treatment process that has been used since the 1920s to protect and add color to metal surfaces. The process involves immersing the metal in an acid bath, resulting in the formation of a thin protective oxide layer on its surface.

What Is It Used For? Anodizing is widely utilized across various industries, from automotive manufacturing to electronics production.

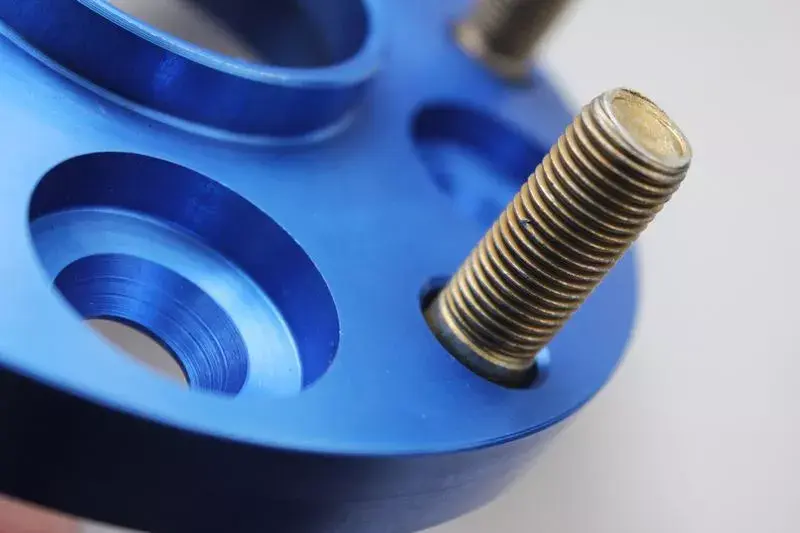

• Automotive Industry: Anodized aluminum components provide excellent rust and corrosion protection, extending their lifespan.

• Electronics: Protecting casings and components from damage and external influences.

• Design: Creating vibrant and durable colored finishes.




What Is Anodizing?

Anodizing is an electrochemical treatment method used to enhance the wear resistance and corrosion resistance of materials. Additionally, this process is employed to improve the appearance of workpiece surfaces. The anodizing technique is widely applied to enhance the performance of products made from copper, titanium, manganese, magnesium, zinc, and stainless steel alloys.

Anodizing Process. Anodizing is a process of applying a thin oxide coating to the surface of metal workpieces through an electrochemical reaction. During the treatment, the workpiece acts as the anode and is submerged in a tank containing an electrolyte. When electric current passes through the solution, a durable oxide film forms on the metal surface.

There are three main types of anodizing:

1. Chromic acid. Used to create a protective coating with high corrosion resistance.

2. Sulfuric acid. Widely applied due to its versatility and cost-effectiveness.

3. Hard anodizing. Utilized for producing an exceptionally strong layer suitable for components exposed to high mechanical stress.




Advantages of Anodized Metal. Anodizing metal workpieces significantly enhances their performance characteristics. Anodized metal offers the following benefits:

1. Corrosion resistance. The protective coating acts as a barrier, preventing the metal surface from coming into direct contact with moisture and aggressive chemicals, ensuring high durability.

2. Strength and wear resistance. The oxide layer increases the mechanical strength of the metal, extending its lifespan.

3. Dielectric properties. The oxide coating has excellent insulating qualities, making anodized metal suitable for electronic applications.

4. Eco-friendliness. The anodizing process and its outcomes are environmentally safe.

5. Aesthetic appeal. Anodizing is often used to enhance the appearance of metal products. Adding aluminum salts to the solution creates decorative coatings with various shades and textures.

The application of an oxide coating is also effective for masking minor surface imperfections, such as scratches or scuffs. This process enhances the product's appearance, giving it a more polished and aesthetically pleasing finish.

Applications of Anodized Metal

Anodizing significantly enhances metal properties, making it highly valuable across various industries. Here are the main applications of anodized aluminum and other metals:

1. Corrosion protection for construction metal structures. Since the mid-20th century, aluminum structures have been coated with oxide layers to improve corrosion resistance. Coating thickness ranges from 15 to 25 microns, depending on climatic conditions.

2. Utilization of reflective properties. Anodized surfaces are shiny and reflective, making them ideal for thermal reflectors, floodlights, lighting fixtures, and similar devices.

3. Wear-resistant and anti-friction coatings. Smooth and hard oxide layers up to 60 microns thick protect parts subjected to friction, extending their lifespan.

4. Dielectric properties. Anodized aluminum serves as an insulator, widely used in electrical devices such as capacitors and transformers.

5. Enhancing strength and hardness of structures. Anodizing improves the mechanical properties of metals, crucial for constructing buildings, airplanes, and ships.

6. Application in heating and cooling devices. Anodized components provide increased durability for elements in such appliances.

7. Coating aluminum window profiles. The protective oxide layer not only increases durability but also enhances appearance by masking minor defects.

8. Aesthetic improvement of decorative and furniture elements. Anodizing creates decorative coatings in a wide range of colors, including finishes resembling bronze, silver, and gold. This is widely used for hardware such as handles, hinges, and holders.

9. Hygiene and practicality. Anodized metal does not stain hands, making it ideal for door handles, railings, knitting needles, and similar items.




Equipment and Devices Used

In industrial settings, steel parts and products are anodized using a sulfuric acid solution. This method ensures maximum efficiency and deep penetration of the protective coating into the material's structure.

At modern factories, the anodizing process is fully automated. Human involvement is minimized, with operators focusing solely on monitoring the machines. This approach guarantees consistent quality and enhances the safety of the production process.

Anodizing Equipment

The equipment used for metal anodizing is divided into three main categories:

1. Primary equipment:

   • This includes the cathode and the electrolyte tank. The tank is made from chemically neutral materials with low thermal conductivity, enabling faster heating of the working solution and extending the equipment's service life.

   • Cathodes are selected based on the chemical composition of the alloy being processed. For instance, lead plates are used for anodizing aluminum parts, with their surface area being twice as large as the surface area of the workpieces.

2. Service equipment:

   • These devices manage the supply of electric current, automatic immersion and removal of workpieces from the electrolyte bath, and monitoring of solution temperature and concentration.

3. Auxiliary equipment:

   1. Used for pre-treatment of workpieces, such as cleaning, degreasing, and rinsing. It also includes mechanisms for moving and storing finished products.

Key Considerations for Selecting Anodizing Equipment

The equipment for anodic oxidation of metal workpieces is selected based on the technological requirements and specifics of the process. Key factors to consider include:

1. Loading and unloading of workpieces. These are the most labor-intensive stages of the anodizing process. The equipment should be reliable, energy-efficient, and designed to minimize manual labor.

2. Equipment power. The speed of the anodizing process is directly related to the power of the primary equipment. Experts recommend using rectifiers with a power rating of at least 2.5 kW. A stepless voltage regulation feature is highly beneficial for precisely adjusting the optimal processing mode for workpieces.

3. Material for contact pads. Copper and its alloys are the optimal materials for flexible contact pads installed around the rings of the electrolyte bath. These materials ensure reliable contact and minimize energy loss.

Methods of Anodizing

The choice of anodic oxidation technology depends on the characteristics of the workpieces, including their geometry and material specifics. Despite differences in scale, the working cycles at large-scale industrial facilities and home workshops are essentially identical.

Key considerations for selecting a method:

• For standard workpieces. Sulfuric acid is the most commonly used method due to its versatility and cost-effectiveness.

• For complex parts. When processing items with intricate geometries or higher quality requirements, chromic acid is often preferred. This method ensures a more uniform oxide layer on hard-to-reach areas.

Thus, the primary distinction between mass production and individual processing lies in the choice of acid, determined by the complexity and material of the workpieces.

Colored Anodizing: Features and Methods

Colored anodizing is a technology that not only protects metal surfaces but also enhances their decorative appeal by changing their color. The surface tone can be altered either through immersion in an electrolyte solution or without it.

There are several types of colored anodic oxidation:

1. Adsorption processing. The color is achieved by absorbing dye into the porous structure of the oxide layer.

2. Electrolytic processing (black anodizing). A special electrolyte is used to give the metal a rich black color.

3. Interference processing. The color is created by the multi-layer structure of the oxide film, which refracts light rays.

4. Integral processing. The tone is formed simultaneously with the oxide layer, ensuring maximum coating durability.

Key methods of colored anodizing:

Let’s explore these methods in more detail to understand their features and applications.

Warm Anodizing

Warm anodizing is a simple method used to prepare metal workpieces for painting. The key advantage of this process is the high adhesion of the resulting coating, which ensures the paint adheres securely to the surface. The method is called "warm" because it requires a temperature not exceeding 122 °F.

Disadvantages:

• Low corrosion resistance of the coating.

• Insufficient strength: if the process parameters are not followed, the film can be wiped off by hand.

Due to these limitations, warm anodizing is used exclusively as a preparatory step before further processing.

Cold Anodizing

Cold anodizing is a process used to create a protective film with a specific color on the surface of aluminum or its alloys. The method is based on an electrochemical reaction without heating the electrolyte solution (maximum temperature – 41 °F). Constant circulation during the process prevents the formation of overheated zones, ensuring uniform coating application.

Advantages:

• High-quality coatings.

• Ability to create decorative colored layers.

Disadvantages:

• Incompatibility with organic dyes.

•


Hard Anodizing

Hard anodizing is used to apply a highly durable protective coating to metal parts. This method is particularly valued in the aerospace and aviation industries, where materials must meet stringent strength and durability requirements.

Features:

• The use of multiple types of electrolytes in specified concentrations enhances the quality of the oxide layer.

• Process parameters and electrolyte compositions are often patented.

Hard anodizing provides exceptional resistance to mechanical damage and corrosion, making it indispensable for components subjected to high stress.

Aluminum Anodizing Process

The aluminum anodizing process consists of several sequential stages: cleaning, etching, anodizing, coloring, and sealing. For large workpieces, lifting equipment such as overhead cranes or hoists is used.

1. Cleaning During preparation, oils and grease are removed from the surface of the workpieces by immersing them in tanks with special acidic or alkaline solutions.

• Importance of cleaning:

  • Residual moisture, dirt, and grease can cause coating defects.

  • Poor surface preparation may result in white spots or uneven coverage.

2. Etching Cleaned workpieces are placed in a tank with an etching solution (alkaline or acidic), where a thin layer of metal is removed.

• Goals of etching:

  • Elimination of micro-defects.

  • Creation of a smooth and uniform surface.

After etching, the workpieces are rinsed to remove solution residues using sodium hydroxide, neutralizing agents, or demineralized water.

3. Anodizing Prepared parts are immersed in an electrolyte bath. Electrical current is applied at a density of 30–300 A/ft² (depending on the solution composition and surface area).

• Steps:

  • Formation of a strong oxide layer through particle deposition.

  • Continuous cooling of the electrolyte to prevent overheating.

After anodizing, parts are rinsed in deionized water to remove charged particles that could cause surface defects.

4. Coloring The porous structure of the anodized layer allows for coloring, enhancing the product's appearance and providing additional protection against moisture and chemicals.

5. Sealing In the final stage, workpieces are immersed in a nickel acetate solution, which fills pores and seals the surface. This enhances smoothness, uniformity, and the durability of the anodized coating.

Processing Different Types of Metal

When anodizing metal workpieces, the properties and characteristics of each material must be taken into account. Below are the specifics of the technology for various metals and their alloys:

Anodizing Copper and Its Alloys Anodizing copper is challenging due to its chemical properties.

• Features:

  • Primarily used to alter the color of the surface.

  • Electrolyte solutions are prepared using phosphates or oxalates.

  • The process is highly complex and rarely employed.

Anodizing Titanium Oxidation of titanium is an essential step in its treatment.

• Benefits:

  • Increases strength and wear resistance.

  • Allows for coloring in a wide range of shades.

• Features:

  • Electrolytes for titanium anodizing are based on various acids.

Anodizing Silver For silver surfaces, anodizing with sodium polysulfides (liver of sulfur) is commonly used.

• Result:

  • The surface acquires shades of blue or violet.

Anodizing Aluminum Aluminum anodizing is one of the most widely used methods for processing this metal.

• Benefits:

  • Improves strength and wear resistance.

  • Enables coloring in a variety of shades.

• Applications:

  • Frequently used for decorative purposes.

Applications of Anodized Aluminum

Anodized aluminum has unique properties that make it highly desirable across various industries. Its combination of lightweight, cost-effectiveness, and enhanced wear resistance makes it an ideal material for construction and beyond.

Key applications:

• Construction. Used for manufacturing window frames, façade panels, staircases, and other architectural elements.

• Transportation. Aluminum components are widely used in automotive, aerospace, marine, and rocket industries due to their lightness and corrosion resistance.

• Household and municipal equipment. Anodized aluminum is utilized in the production of kitchenware, furniture hardware, lighting fixtures, and other products.

These qualities make anodized aluminum unmatched in functionality, aesthetics, and durability.

Features of Anodized Coating Maintenance

Proper maintenance of anodized coatings is crucial, especially for parts that play a vital role in the functionality of a structure. Let’s explore the care process using bicycle forks and shock absorbers as examples, where the integrity of the protective layer ensures both aesthetic appeal and performance.

Why Is Anodized Coating Maintenance Important?

1. Prevention of corrosion and leaks.

   Damage to the anodized layer on moving parts like fork stanchions can lead to oil leakage through cracks, degrading the bike's functionality and damaging other components.

2. Aesthetics.

   Anodized metal is far more visually appealing than painted surfaces. A wide variety of anodized components, such as pedals, stems, and valve caps, are available to enhance your bike's look.

3. Reflective properties.

   Clear anodized coatings, through light interference, add a luxurious look to bike parts while improving visibility for cyclists in low-light conditions.

Key Maintenance Tips for Anodized Parts:

1. Inspect the coating regularly.

   • Damage to moving parts like fork stanchions must be addressed immediately. Even minor defects can escalate into serious problems.

   • Use fine sandpaper to carefully remove scratches or burrs.

2. Seek professional repair.

   • For severe damage, visit a repair shop. Specialists may restore the oxide layer or apply nail polish for minor fixes.

   • If repair isn’t feasible, the damaged part must be replaced.

3. Monitor seals and bushings.

   • Ensure they remain free of dirt and sand, which can damage the fork's coating.

   • Regularly check for adequate lubrication to prevent wear.

Anodizing in Home Workshops Anodizing aluminum parts is possible even in a home workshop. The process is cost-effective and suitable for creating both protective coatings and bases for painting.
